Install a Kubernetes Cluster on RHEL8 with conatinerd
For this, we will walk-through a multi-node Kubernetes cluster installation on RHEL 8. This tutorial is command-line based so you will need access to your terminal window . Will be performing the steps on GCP.
Starting from RHEL 8, docker has now natively been replaced by podman and buildah which are tools from Redhat. As a matter of fact, the docker package has now been removed from the default package repository and at the end we all are working with the same API , then we don’t have to lock-in into a specific tool.
These are the popular Container runtimes and being used mainly
For this cluster , we are going to use Containerd as it’s Container runtimes.
Prerequisites:
- Three nodes running RHEL 8 out from which 1 Master Node and 2 Worker Nodes.
- It is recommended that your nodes should have at least 2 CPUs with 2GB RAM or more per machine. This is not a strict requirement but good to have.
- Internet connectivity on all your nodes. We will be fetching Kubernetes and other required packages from the repository. Equally, you will need to make sure that the DNF package manager is installed by default and can fetch packages remotely.
* showcased only worker node
Installation of Kubernetes Cluster on Master-Node

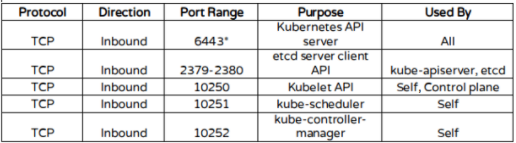

Kubernetes makes use of various ports for communication and access and these ports need to be accessible to Kubernetes and not limited by the firewall. If your cluster behaves abnormally , you can configure the firewall rules on the ports.
Step 1: Login to the node and here i will be performing all the operation on root
[root@k8master ~]# cat /etc/redhat-release
Red Hat Enterprise Linux release 8.2 (Ootpa)
Step 2 : Install Container runtime on RHEL 8
This section contains the necessary steps to use containerd as CRI runtime.
Use the following commands to install Containerd on your system:
Prerequisites
cat > /etc/modules-load.d/containerd.conf <<EOF
overlay
br_netfilter
EOFmodprobe overlay
modprobe br_netfilter# Setup required sysctl params, these persist across reboots.
cat > /etc/sysctl.d/99-kubernetes-cri.conf <<EOF
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_forward = 1
net.bridge.bridge-nf-call-ip6tables = 1
EOFsysctl --system
Install containerd
### Install required packages
dnf install -y yum-utils device-mapper-persistent-data lvm2
## Add docker repository
dnf config-manager --add-repo=https://download.docker.com/linux/centos/docker-ce.repo
Adding repo from: https://download.docker.com/linux/centos/docker-ce.repo
[root@k8master yum.repos.d]# dnf update -y && dnf install -y containerd.io
## Configure containerd
mkdir -p /etc/containerd
containerd config default > /etc/containerd/config.toml# Restart containerd
systemctl restart containerd# Enable containerd on boot root@k8master ~]# systemctl enable containerd
Step 3: Install Kubernetes (Kubeadm, kubelet and kubectl) on RHEL 8
Next, you will need to add Kubernetes repositories manually as they do not come installed by default on RHEL8.
Kubeadm helps you bootstrap a Kubernetes cluster. With kubeadm, you are going to create/enable single-control-plane.
Kubeadm also supports other cluster lifecycle functions, such as upgrades, downgrade, and managing bootstrap tokens
# Add yum repo file for Kubernetes # cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://packages.cloud.google.com/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=1
repo_gpgcheck=1
gpgkey=https://packages.cloud.google.com/yum/doc/yum-key.gpg https://packages.cloud.google.com/yum/doc/rpm-package-key.gpg
EOF#Install Kubernetes (kubeadm, kubelet and kubectl) [root@k8master ~]# dnf install -y kubeadm-1.17.0 kubelet-1.17.0 kubectl-1.17.0
When the installation completes successfully, enable and start the kubelet service
[root@k8master ~]# systemctl enable kubelet[root@k8master ~]# echo 'KUBELET_EXTRA_ARGS="--fail-swap-on=false"' > /etc/sysconfig/kubelet[root@k8master ~]# systemctl start kubelet
Step 4: Create a control-plane Master with kubeadm
[root@k8master]# kubeadm init --pod-network-cidr=192.168.0.0/16
--
--
--
Your Kubernetes control-plane has initialized successfully!Next, copy the following join-token and store it somewhere, as we required to run this command on the worker nodes later.
kubeadm join 10.128.15.211:6443 --token 0xbszv.o9j5fim3j21xz47a \ --discovery-token-ca-cert-hash sha256:876637c5e5c74fcafa05372d187b58d36aa418b9faa46e1ec4c7388443143087Once Kubernetes initialized successfully, you must enable your user to start using the cluster. In our scenario, we will be using the root user. You can also start the cluster using sudo user as shown.
To use root, run:
To start using your cluster, you need to run the following as a regular user:
mkdir -p $HOME/.kube
cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
chown $(id -u):$(id -g) $HOME/.kube/configNow confirm that the kubectl command is activated.
[root@k8master ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
k8master NotReady master 35m v1.17.0ATM, you will see the status of the k8-master is ‘NotReady’. This is because we are yet to deploy the overlay network for the cluster.
Step 5: Setup Your Pod Network
We are going to use calico as our CNI or pod network
kubectl apply -f https://docs.projectcalico.org/manifests/calico.yaml# You should see the following output.configmap/calico-config createdcustomresourcedefinition.apiextensions.k8s.io/bgpconfigurations.crd.projectcalico.org createdcustomresourcedefinition.apiextensions.k8s.io/bgppeers.crd.projectcalico.org createdcustomresourcedefinition.apiextensions.k8s.io/blockaffinities.crd.projectcalico.org createdcustomresourcedefinition.apiextensions.k8s.io/clusterinformations.crd.projectcalico.org createdcustomresourcedefinition.apiextensions.k8s.io/felixconfigurations.crd.projectcalico.org createdcustomresourcedefinition.apiextensions.k8s.io/globalnetworkpolicies.crd.projectcalico.org createdcustomresourcedefinition.apiextensions.k8s.io/globalnetworksets.crd.projectcalico.org createdcustomresourcedefinition.apiextensions.k8s.io/hostendpoints.crd.projectcalico.org createdcustomresourcedefinition.apiextensions.k8s.io/ipamblocks.crd.projectcalico.org createdcustomresourcedefinition.apiextensions.k8s.io/ipamconfigs.crd.projectcalico.org createdcustomresourcedefinition.apiextensions.k8s.io/ipamhandles.crd.projectcalico.org createdcustomresourcedefinition.apiextensions.k8s.io/ippools.crd.projectcalico.org createdcustomresourcedefinition.apiextensions.k8s.io/kubecontrollersconfigurations.crd.projectcalico.org createdcustomresourcedefinition.apiextensions.k8s.io/networkpolicies.crd.projectcalico.org createdcustomresourcedefinition.apiextensions.k8s.io/networksets.crd.projectcalico.org createdclusterrole.rbac.authorization.k8s.io/calico-kube-controllers createdclusterrolebinding.rbac.authorization.k8s.io/calico-kube-controllers createdclusterrole.rbac.authorization.k8s.io/calico-node createdclusterrolebinding.rbac.authorization.k8s.io/calico-node createddaemonset.apps/calico-node createdserviceaccount/calico-node createddeployment.apps/calico-kube-controllers createdserviceaccount/calico-kube-controllers created
Now if you check the status of your master-node, it should be ‘Ready’.
[root@k8master ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
k8master Ready master 43m v1.17.0 Next, we add the worker nodes to the cluster.
Adding Worker Nodes to Kubernetes Cluster
You can follow the same steps starting from 1-3 i.e till( Kubeadm, kubelet and kubectl) on the worker nodes and once everything set up on the worker node.
Join the Worker Node to the Kubernetes Cluster
We now require the token that kubeadm init generated, to join the cluster. You can copy and paste it to your k8worker if you had copied it somewhere.
kubeadm join 10.128.15.211:6443 --token 0xbszv.o9j5fim3j21xz47a \ --discovery-token-ca-cert-hash sha256:876637c5e5c74fcafa05372d187b58d36aa418b9faa46e1ec4c7388443143087Or you can generate token freshly by executing the same command, if you have not stored the command.
kubeadm token create --print-join-commandGo back to your master-node and verify if worker k8worker have joined the cluster using the following command.
root@k8mrhel swapnasagar_pradhan]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
k8master Ready master 5h23m v1.17.0
k8worker Ready <none> 5h6m v1.17.0If all the steps run successfully, then, you should see k8worker in ready status on the master-node. At this point, you have now successfully deployed a Kubernetes cluster on CentOS 8.
For more info — https://kubernetes.io/
